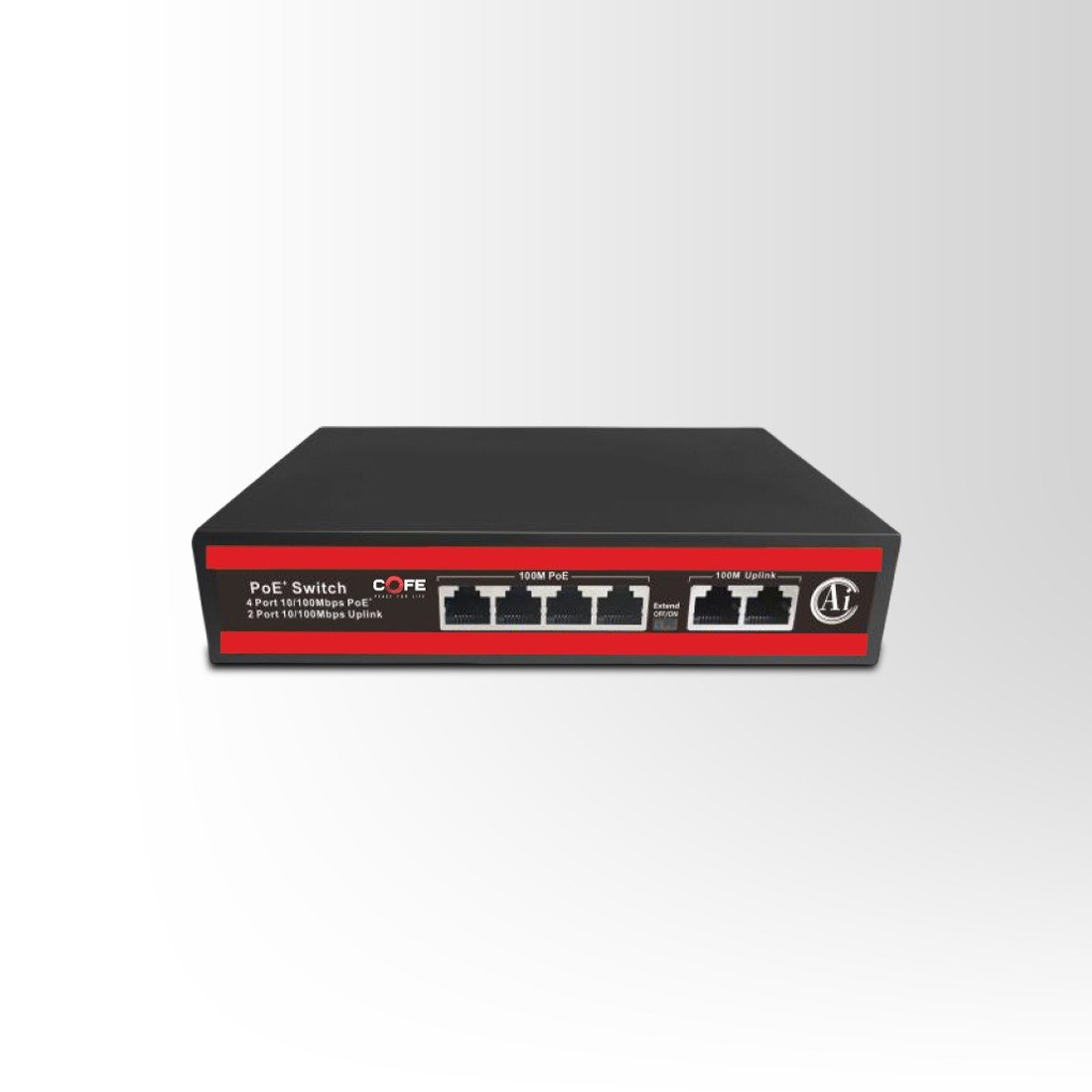

COFE CF-SWP-2504
Thumbnail

COFE CF-SWP-2504

  • Watchdog Support
  • CAT-6 Standard Network Cable
  • Switching Capacity
  • Working Temperature
  • Plug and Play
  • Support Up-To 250mtr Transmission Distance
  • Power Consumption
  • Support Restrain Network Storm VLAN Function
  •  Support Lightning Protection
  • AI Support.

Technical parameter

Power

Network Connector

Network Switch

Power Over Ethernet

RJ45 Port

LED Indicator

General

Power
Power Adapter Voltage AC 110V-240V
AC 110V-240V 65W (52V1.44A)
Network Connector
Network Port PoE Ethernet Port- 1～4 Port:10/100Mbps/ Ethernet Port- Uplink Port:10/100Mbps
Transmission Distance Watchdog- 1~4 Port, 1～4 Port: 100Mbps: 0~100m: 10Mbps: 0~250m
Transmission Medium Uplink Port: 0~100m, Cat5 / 5e / 6 Standard Network Cable
Network Switch
Network Standard IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab
Switching Capacity 1.6Gbps
Packet Buffer Memory 1 Mbits
Throughput 0.8928Mpps
MAC Table 1K
Packet Forwarding Rate 10Mbps:14880pps/port, 100Mbps:148800pps/port
Power Over Ethernet
PoE Standard IEEE802.3af/at
PoE Power Supply 12+, 36-: 4 Core Power Supply
PoE Power af=15.4W,at=30W for each Port
RJ45 Port
Port Function 1-6 ports 10/100BaseT(X) auto-detect, Full/half duplex MDI/MDI-Xadaptive
Forwarding mode Store-and-forward (full wire speed)
LED Indicator
LED Indicator Power indicator: PWR (green); Network indicator: Link (yellow); POEworking indicator: PoE (green); Function switch indicator: EXTEND(green)
General
Working Temperature 0⁰C ~ 550C
Relative Humidity 20 ~ 95%
Storage Temperature -20C ~ 70C
Color Black
