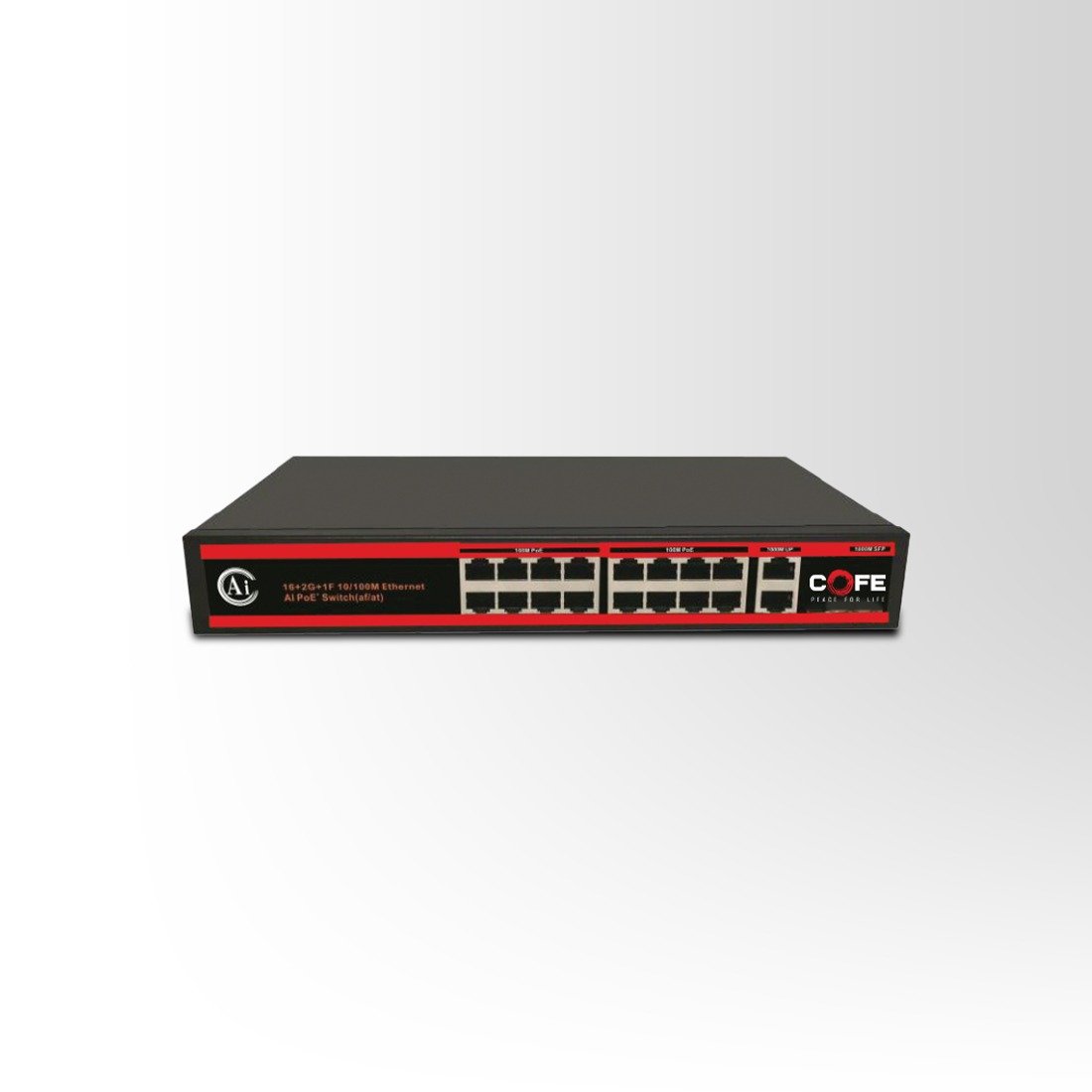

COFE CF-SWP-25016FG-SFP
Thumbnail

COFE CF-SWP-25016FG-SFP

  • Watchdog Support
  • CAT-6 Standard Network Cable
  • Switching Capacity
  • Working Temperature
  • Plug and Play
  • Support Up-To 250mtr Transmission Distance
  • 250W Power Consumption
  • Support Restrain Network Storm VLAN Function
  •  Support Lightning Protection
  • AI Support.

Technical parameter

Power

Network Connector

Network Switch

Power Over Ethernet

RJ45 Port

LED Indicator

General

Power
Power Adapter Voltage AC 110V-240V
Consumption 250W (52V,2.3A)
Network Connector
Network Port PoE Ethernet Port- 1～16 Port:10/100Mbps, SFP Port- SFP Port: 1000Mbps
Transmission Distance Watchdog- 1~16 Port’ 100Mbps:0~100m; 10Mbps: 0~250m, SFP: depends on the optical module(20km...100km)
Transmission Medium Uplink Port: 0~100m, Cat5 / 5e / 6 Standard Network Cable
Network Switch
Network Standard IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab
Switching Capacity 9.2 Gbps
Packet Buffer Memory 1 Mbits
Throughput 6.8448Mpps
MAC Table 2K
Packet Forwarding Rate 10Mbps:14880pps/por, 100Mbps:148800pps/port, 1000Mbps:1488000pps/port.
Power Over Ethernet
PoE Standard IEEE802.3af/at
PoE Power Supply 12+, 36-: 4 Core Power Supply
PoE Power af=15.4W at=30W
RJ45 Port
Port Function Power priority mechanism, fast and forward, MAC automatic Learning and aging IEEE802.3X Full-duplex and mode and back pressure for Half-duplex mode
LED Indicator
LED Indicator LINK/ACT.100Mbps: PoE Status Indicator: Power indicator: Extender
General
Working Temperature 0⁰C ~ 55⁰C
Relative Humidity 20 ~ 95%
Storage Temperature -20⁰C ~ 70⁰C
Color Black
