Technical parameter

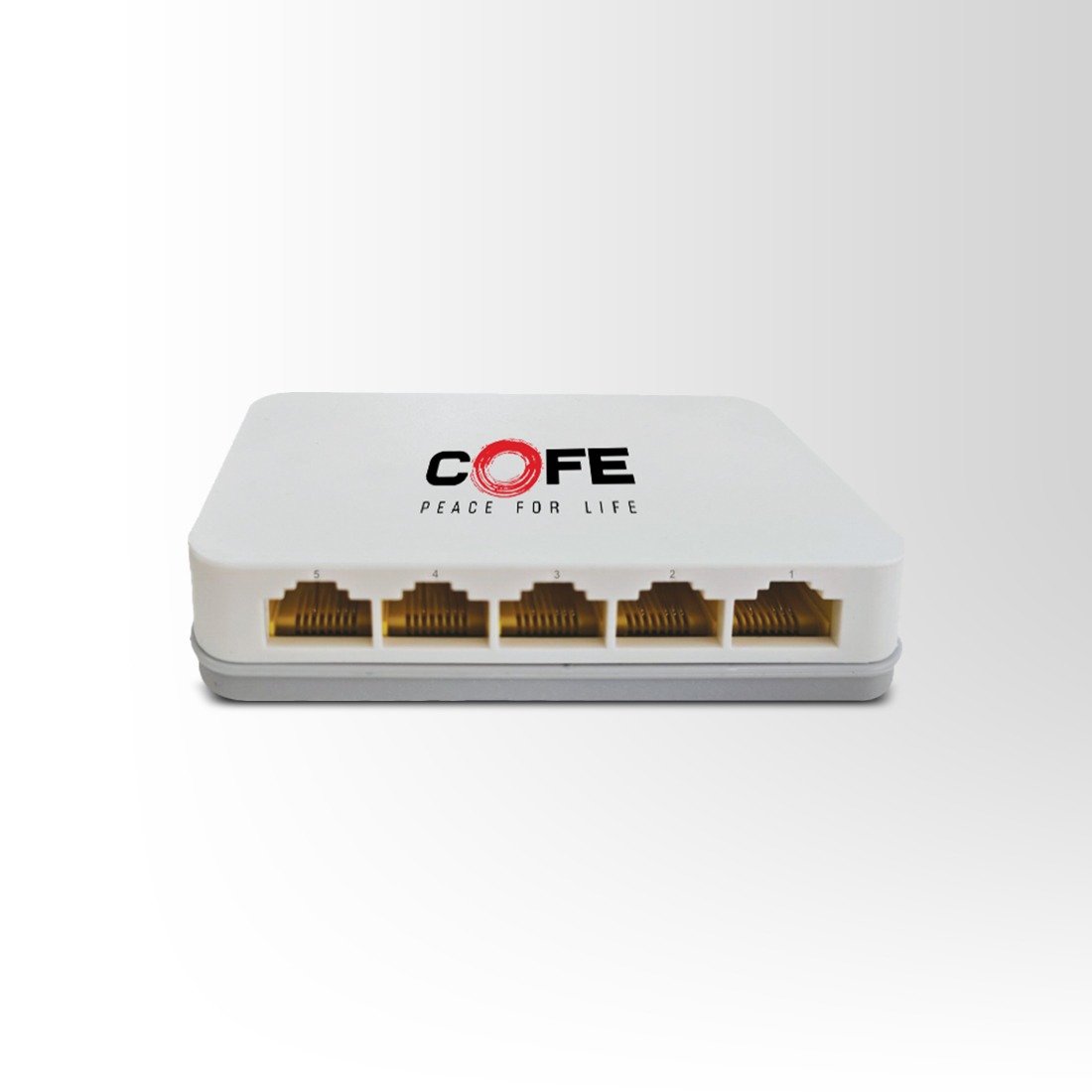

5 Port 10/100M Fast Ethernet switch
| Interface | Interface |
| Ethernet Port | 1-5support 10/100Base-TX auto-sensing, full/ half duplexMDI/ MDI-X self-adaption |
| Network Protocols | IEEE 802.3 10BASE-T IEEE 802.3i 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x |
| Network Media | 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
| Performance Specification | Bandwidth: 1Gbps Packet Buffer Memory:512Kbits MAC Address Table: 1K 10 Mbps Packet Forwarding Rate：14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port Switching Delay: <10us |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR; Link: Link/Act |
| Power Supply | Input Power: 5V/1A DC Working Consumption: <1W |
| Working Environment | Working temperature: 0～+40 ; Storage temperature: -40～+70 Relative Humidity: 5%~90 %( no condensation) |
| MTBF | 300,000 hours |
| Weight & Size | Product Weight: 0.17 KG Product size (L×W×H): 91mm× 72mm× 23mm |
