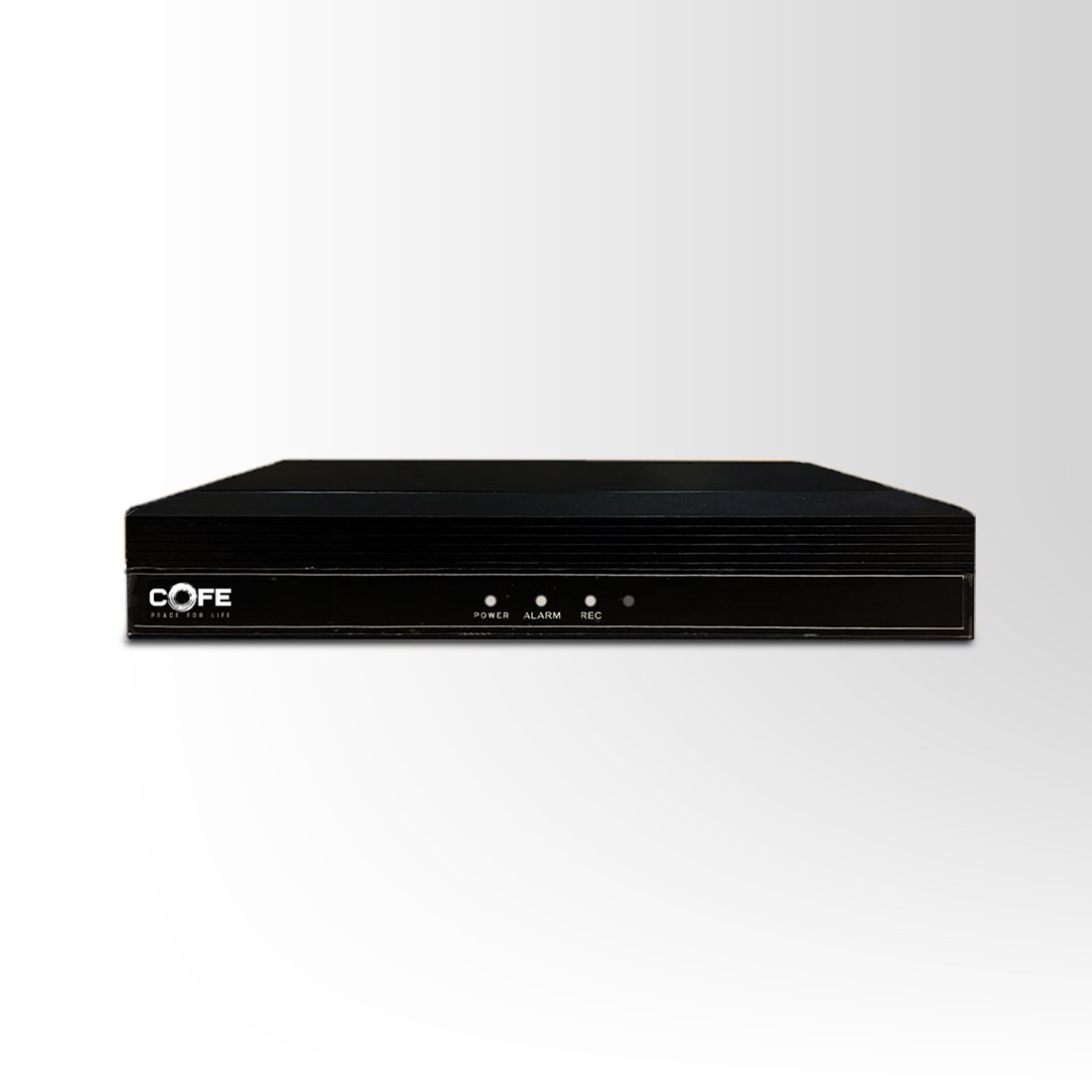

COFE-CF-MHD-XV1608N
Technical parameter
Video
| Codec | H.265+/H.265/H.264 |
| Preview | 16ch 4K @7.5fps / 16ch5M@12.5fps / 16ch4M@15fps / 16ch3M@ 18fps / 16ch1080P |
| Encode | 16ch 4K @4fps / 16ch5M@6fps / 16ch4M@9fps / 16 ch3M@10fps 16ch 1080P@16fps |
| Decode | 4ch 4K @4fps / 4ch5M@6fps / 4ch4M@9fps / 4ch3M@10fps 4ch1080P@16fps |
| Multi-mode | Analog:16ch4K；16ch5M, Hybrid：16ch4K (analog)+16ch4K (network) IP: 16ch4K；16ch5M |
| Playback | 3ch |
Audio
| Coaxial Audio | Support |
| Compression | G.711a |
| Intercom | Support |
Management
| Record Mode | Manual>Alarm>Motion detection>Timing |
| Inquire Mode | Inquire by Time / Calendar / Event/Channel |
| Storage Mode | HDD Storage, Network Storage |
| Backup | Network, USB, SATA |
Interface
| Video input | 16 BNC（Support Coaxitron) |
| HDMI Output | 1 HDMI (MAX:4K) |
| VGA Output | 1 VGA (MAX:1080P) |
| Audio I/O | 2 In / 1 Out |
| Alarm I/O | 0/0 |
| Ethernet Port | 1*10/100Mbps Ethernet Port, RJ45 Port |
| PTZ Control | Support for Multiple PTZ Protocol |
| USB Port | 2 USB2.0 Ports |
| HDD | 2 SATA Interface (Up to 14TB) |
General
| Temperature | 0⁰C to 55⁰C |
| Humidity | 10% -90% RH |
| Power Rated | 12V/2A |
| Consumption | <10W（Without HDD） |
