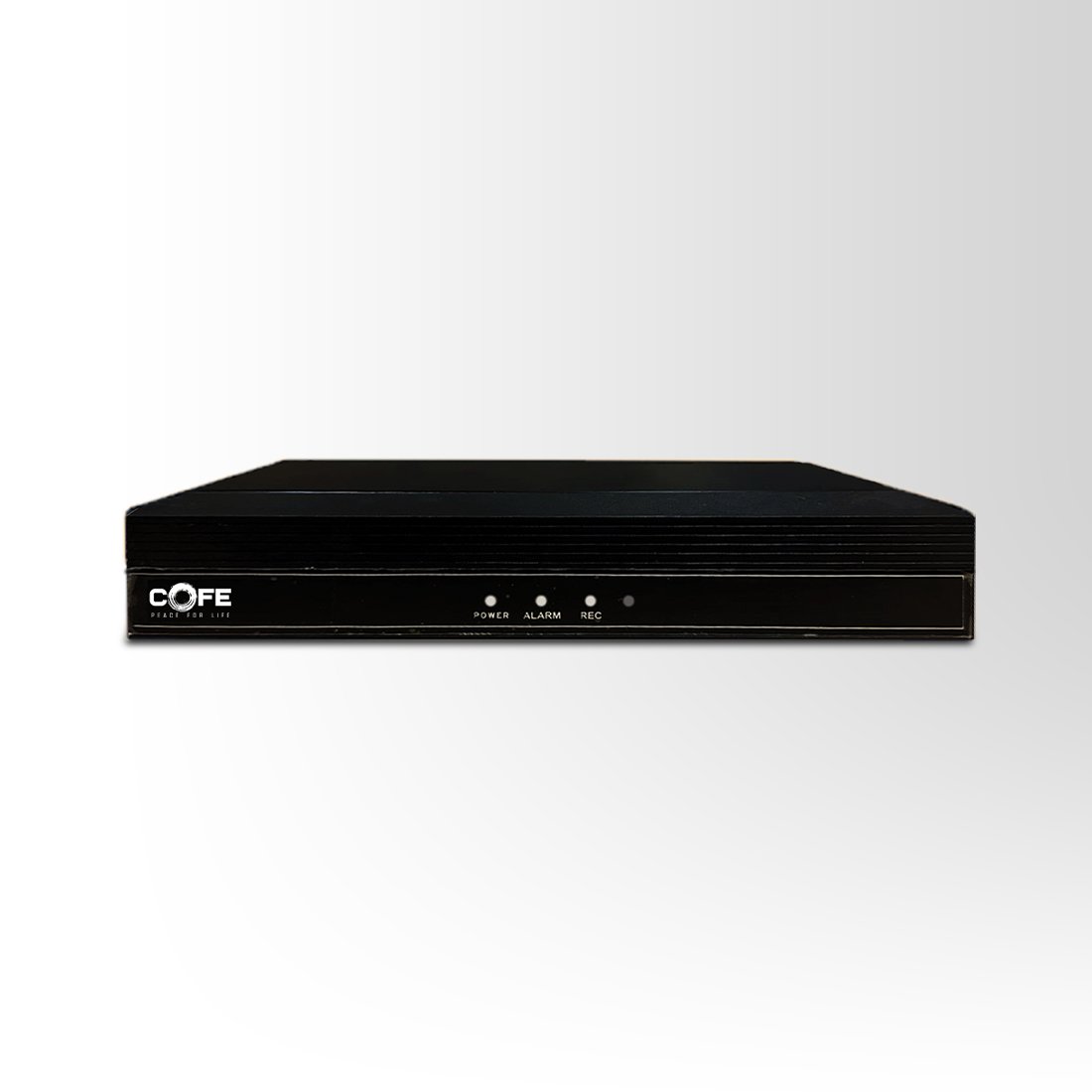

COFE-CF-MHD-XV1605N
Technical parameter
Video
| Codec | H.265+/H.265/H.264 |
| Preview | 16ch 5M-N@12fps / 16ch 4M-N@15fps / 16ch1080P@15fps default 5M-N |
| Encode | 16ch 5M-N@6fps / 16ch 4M-N@8fps / 16ch1080P@8fps default 5M-N |
| Decode | 16ch 5M-N@6fps / 16ch 4M-N@8fps / 16ch1080P@8fps default 5M-N |
| Multi-mode | Analog:16ch 5M-N, Hybrid：16ch 5M-N（analog）+4ch1080P（network）IP: 16ch 1080P/4ch 5M |
| Playback | 3ch |
Audio
| Coaxial Audio | Support |
| Compression | G.711a |
| Intercom | Support |
Management
| Record Mode | Manual>Alarm>Motion detection>Timing |
| Inquire Mode | Inquire by Time / Calendar / Event/Channel |
| Storage Mode | HDD Storage, Network Storage |
| Backup | Network, USB, SATA |
Interface
| Video input | 16 BNC（Support Coaxitron) |
| HDMI Output | 1 HDMI (MAX:4K) |
| VGA Output | 1 VGA (MAX:1080P) |
| Audio I/O | 2 In / 1 Out |
| Alarm I/O | 0/0 |
| Ethernet Port | 1*10/100Mbps Ethernet Port, RJ45 Port |
| PTZ Control | Support for Multiple PTZ Protocol |
| USB Port | 2 USB2.0 Ports |
| HDD | 2 SATA Interface (Up to 14TB) |
General
| Temperature | 0⁰C to 55⁰C |
| Humidity | 10% -90% RH |
| Power Rated | 12V/2A |
| Consumption | n <10W（Without HDD） |
